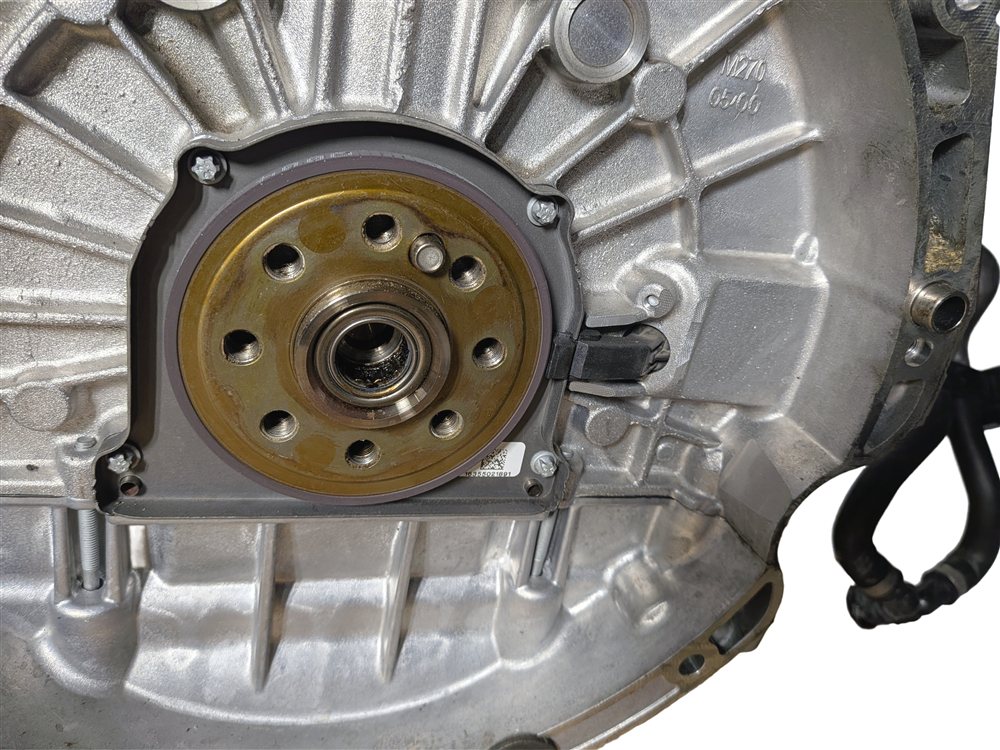

(1 - RUNNING ENGINE TEST NOTES): Engine runs great, starts right up, idle is smooth, and wide-open throttle snap sounds good. Oil quality looks good and there's no smoke from the tailpipes. No unusual noises heard from the operating engine. (2 - POST REMOVAL INSPECTION NOTES): Engine overall looks solid with no major issues found during teardown. Engine set a fault for Pressure solenoid on the oil pump, that will need replaced prior to installation. (common failure on these engines so should be done anyway, requires R&R of oil pan) Valve covers don't appear to be leaking, and both front and rear mains look dry. The oil pan also appears leak-free. Turbo feels tight with minimal radial or axial play, and wastegates have typical movement. (3 - SHOULD ALWAYS BE DONE): Replacement of timing components, plugs, injectors, pumps, seals, gaskets, hoses, and filters should be done prior to installation for long-term reliability. REPLACE OIL PUMP PRESSURE SOLENOID prior to installation.

Overall test result

Yes

Start quality

Good

Idle quality

Good

Output under load

Good

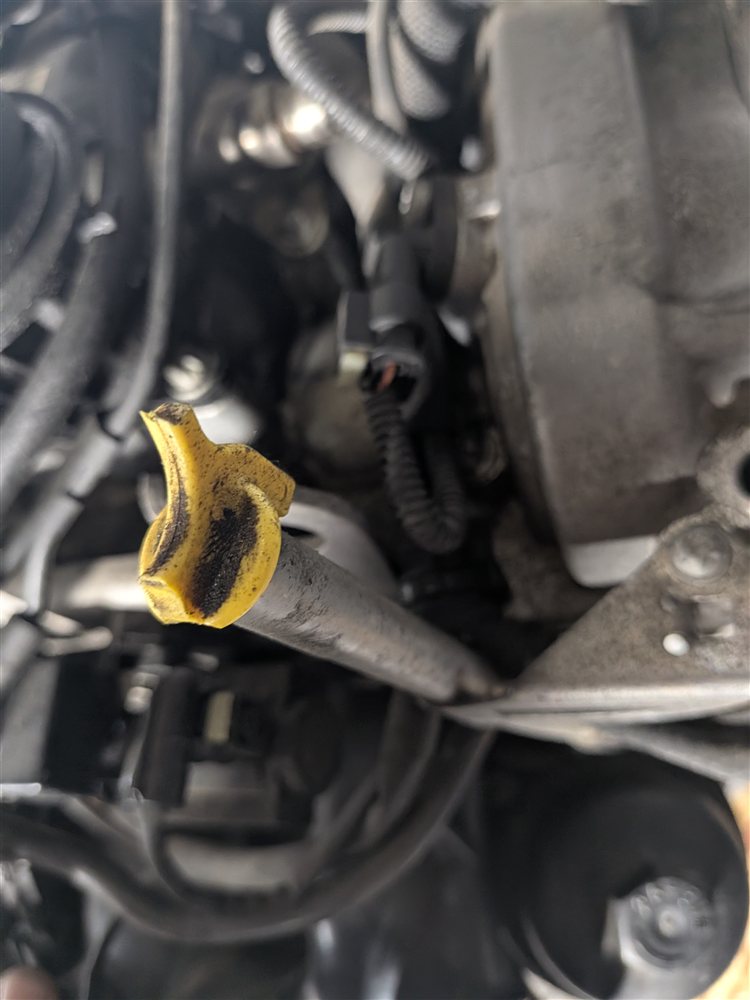

Oil quality

Good

Smoke from tailpipes

None

Unusual engine noise

None

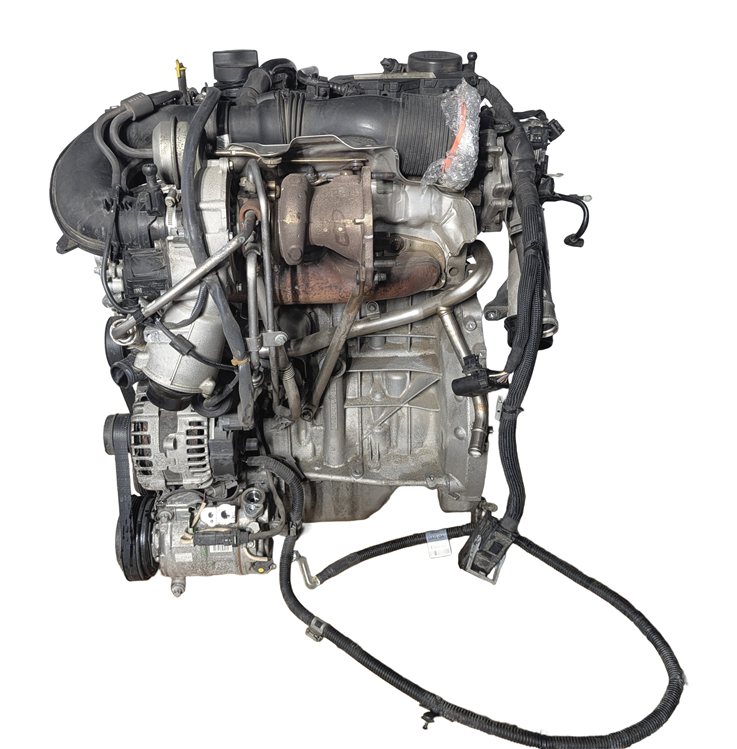

Turbo notes

A little waste gate rattle on cold start

Noted: needs oil cooler gasket

Noted: needs oil filter stand gasket

Note: needs wiring to oil pressure control solenoid and possibly the solenoid it self to be replaced (you must remove oil pan to do this job).

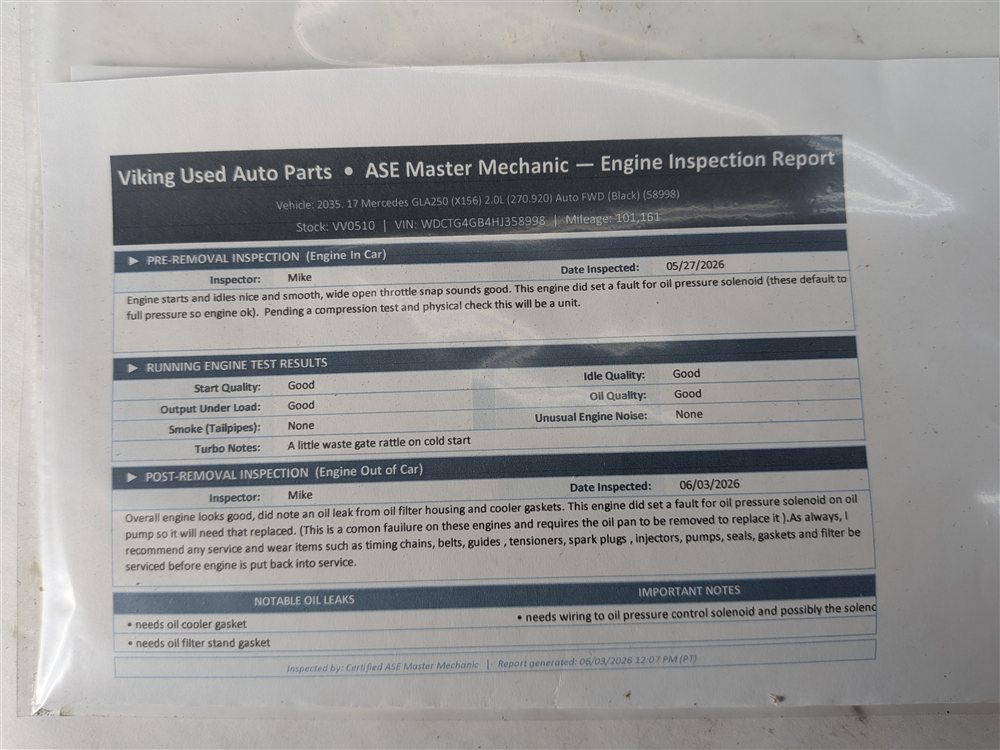

In-car test: Engine starts and idles nice and smooth, wide open throttle snap sounds good. This engine did set a fault for oil pressure solenoid (these default to full pressure so engine ok). Pending a compression test and physical check this will be a unit.

Out-of-car inspection: Overall engine looks good, did note an oil leak from oil filter housing and cooler gaskets. This engine did set a fault for oil pressure solenoid on oil pump so it will need that replaced. (This is a comon fauilure on these engines and requires the oil pan to be removed to replace it ).As always, I recommend any service and wear items such as timing chains, belts, guides , tensioners, spark plugs , injectors, pumps, seals, gaskets and filter be serviced before engine is put back into service.
